| Place of Origin: | China |
| Brand Name: | Haihao |
| Certification: | CE |

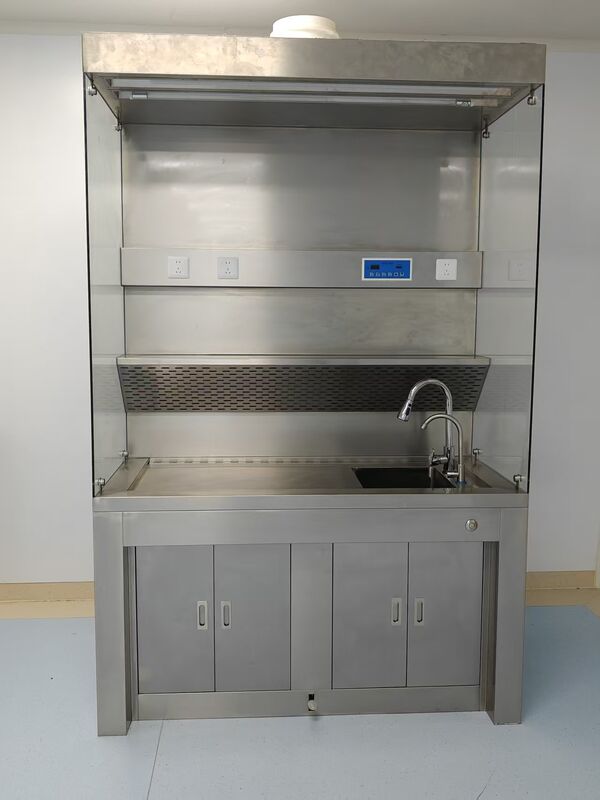

As a trusted manufacturer of operating room equipment, we bring decades of expertise in contamination control to the pathology laboratory. The MediShield™ Grossing Workstation is a dedicated specimen processing system designed to protect personnel from formalin exposure and biohazards while enhancing workflow efficiency. Built to surgical-grade standards, this workstation combines robust construction, intelligent ventilation, and ergonomic accessories to create the ideal environment for gross examination and tissue sampling.
Premium Material Construction: The worktop is fabricated from 304 stainless steel with a minimum thickness of 1.0 mm, ensuring long-term durability and resistance to corrosion from formalin, xylene, and harsh cleaning agents.
Anti-Reflective Working Surface: The matte finish eliminates glare from overhead lighting, reducing eye strain during prolonged procedures and allowing for accurate specimen visualization.
Seamless Welding with Chamfered Edges: All joints are ground smooth and edges are precision-chamfered to eliminate sharp corners, preventing scratches and eliminating bacterial harborage points.
Engineered Drainage Geometry: The worktop is tilted at a 3° to 5° rearward angle with built-in drainage channels, ensuring waste liquids flow quickly and completely toward the collection port without pooling.
Integrated Storage Solutions: Stainless steel cabinets and drawers beneath the work surface provide organized storage for retrieval tools, specimen containers, and consumables.
Odor-Containing Cabinetry: Cabinet doors feature a self-closing mechanism with excellent sealing performance, effectively preventing odor leakage and maintaining a clean laboratory environment.
Flexible Exhaust Hood: A top-mounted exhaust hood is fully adjustable in height and rotatable through 360 degrees, allowing precise positioning based on procedure type and user preference.
Active Negative Pressure Control: A built-in negative pressure device maintains the workstation interior at a controlled range of -5 Pa to -10 Pa.
Verified Airflow Velocity: The system delivers air movement of ≥0.3 m/s, ensuring rapid capture and removal of formaldehyde vapors, tissue debris aerosols, and other airborne contaminants.
Source Capture Technology: The combination of negative pressure and directional airflow ensures hazardous fumes are evacuated before reaching the user's breathing zone.
Dual-Control Mixing Faucet: Hot and cold water faucet with intuitive wrist-blade handles for precise temperature control.
High-Pressure Spray Gun: Delivers rinsing water at ≥0.6 MPa pressure, providing the force needed to thoroughly clean work surfaces and remove adherent tissue fragments.
Retractable Hose Design: The spray gun features a retractable hose that keeps the work area uncluttered when not in use while remaining instantly accessible.
Pure Water Interface: A dedicated connection point for deionized or distilled water systems accommodates specialized specimen processing protocols requiring reagent-grade water.
Anti-Clogging Filtration: Guide channels direct waste liquids through a filter device that effectively intercepts tissue debris, preventing plumbing blockages.
High-Capacity Sealed Collection: A ≥20 liter sealed waste liquid collection bucket is installed at the rear of the workstation for easy removal and disposal.
Hands-Free Waste Disposal: A foot-operated waste bucket hook mounted on the work surface edge allows for hands-free opening, eliminating contact contamination risks.
Complete Containment: The sealed collection system prevents odor escape and maintains a hygienic laboratory environment.
Cold Light Source Spotlight: Delivers 5000K to 6000K color temperature with flicker-free operation, providing true-to-life tissue visualization without heat-induced specimen degradation.
Side-Mounted Tool Organization: Tool racks and specimen box placement areas on both sides of the work surface keep frequently used items within easy reach.
Adjustable Specimen Holders: Securely position specimens of various sizes for optimal examination and dissection, reducing manual manipulation and improving safety.
Shadow-Free Illumination: The overhead lighting design ensures the entire work surface is evenly illuminated without distracting shadows.
Perimeter Splash Guard: A ≥15 cm high splash guard surrounds the work surface, effectively preventing tissue fluids and fixatives from splashing onto users or surrounding areas.
Optional Transparent Shield: For applications requiring additional isolation, a clear protective screen creates a physical barrier between operator and specimen while maintaining full visibility.
Aerosol Containment: The combination of physical barriers and negative pressure ventilation ensures comprehensive protection against both splashes and airborne contaminants.
Ultraviolet Disinfection Capability: The workstation can be equipped with UV lamps for timed disinfection of tools, consumables, and work surfaces between procedures.
GB 19489 Compliance: The entire unit is designed and manufactured in accordance with the General Requirements for Laboratory Biosafety, providing documented assurance of biosafety performance.
Easy Decontamination: The seamless stainless steel construction with coved corners allows for thorough cleaning and disinfection without hidden accumulation points.
Worktop Material: 304 stainless steel, ≥1.0 mm thickness
Surface Finish: Matte, anti-reflective
Worktop Angle: 3°–5° rearward tilt
Negative Pressure Range: -5 Pa to -10 Pa
Exhaust Air Velocity: ≥0.3 m/s
Spray Gun Pressure: ≥0.6 MPa
Waste Collection Capacity: ≥20 liters
Lighting Color Temperature: 5000K–6000K
Splash Guard Height: ≥15 cm
Compliance Standards: GB 19489
Hospital Pathology Departments: For routine surgical specimen grossing and sampling
Forensic Medical Examiner Offices: For medicolegal tissue preparation
Medical Teaching Facilities: For pathology resident training and education
Veterinary Pathology Laboratories: For animal tissue examination and necropsy sampling
Research Laboratories: For tissue harvesting and processing in research studies
Proven Contamination Control: Negative pressure and high-velocity exhaust ensure rapid removal of hazardous formaldehyde vapors and bioaerosols.
Surgical-Grade Durability: 304 stainless steel construction with seamless welding guarantees decades of reliable service.
Ergonomic Workflow Enhancement: Height-adjustable exhaust hood, foot-operated waste disposal, and organized tool placement reduce physical strain.
Comprehensive Biosafety Compliance: Designed to meet GB 19489 standards, providing confidence for laboratory managers and safety officers.
Manufacturing Excellence: Built by a trusted operating room equipment manufacturer with decades of experience in洁净 technology.
The MediShield™ Grossing Workstation is available in multiple configurations to suit your specific laboratory requirements:
Countertop Model: Compact design for laboratories with limited floor space
Freestanding Model: Full-size workstation for dedicated grossing areas
Digital Integration Package: Includes camera mounting and touchscreen controls for paperless workflow
Custom Dimensions: Available upon request to match your existing laboratory layout
