| Place of Origin: | China |
| Brand Name: | Haihao |
| Certification: | CE ISO |

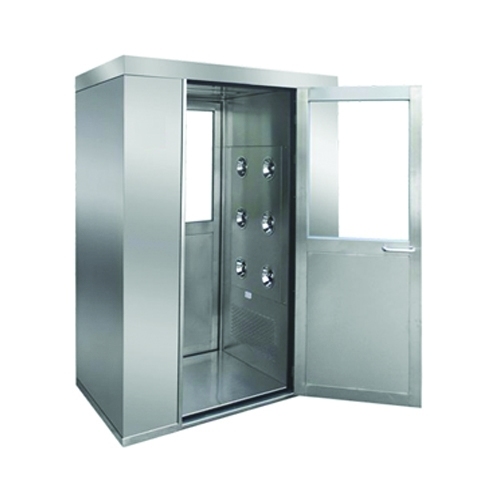

Automatic Air Shower Transfer Chamber | Dual-Door Material Airlock With Touchscreen
Description:
• Fully Automated Operation: Infrared sensor-triggered cycling with digital countdown display.
• High-Velocity Air Filtration: 20-25 m/s HEPA/ULPA-filtered airflow from stainless steel nozzles.
• Safety Interlocks: Dual-door electronic locking system with emergency release function.
• Real-Time Monitoring: Touchscreen interface with cycle logs and filter status alerts.
• Compliance: Meets ISO 14644-1 and GMP standards for critical environments.
| Air shower transfer window paraments | |||
| P/N | LHH-19-01 | LHH-19-02 | LHH-19-03 |
External Size W*D*H(mm) |
960*600*1450 | 1060*700*1550 | 1160*800*1650 |
Air shower Size W*D*H(mm) |
600*600*600 | 700*700*700 | 800*800*800 |
| Fan configuration | 195#-1 SET | 195#-1 SET | 195#-1 SET |
| Fan power | 450W/SET | 450W/SET | 450W/SET |
| Number of nozzles | 4PC | 5PCS | 5PCS |
| Cleanliness level | 100-1000level | 100-1000level | 100-1000level |
Average wind speed (m/s) |
20-25m/s±15% | 20-25m/s±15% | 20-25m/s±15% |
| Noise level | 60~65dB(A) | 60~65dB(A) | 60~65dB(A) |
Lighting/sterilization lamp |
1PC | 1PC | 1PC |
| Advanced filter | 1SET | 1SET | 1SET |
| Air shower time | 0~90s(Adjustable) | ||
| Material | Cold Plate/SUS201#/SUS304#SUS316# | ||
| Power supply | 380V/50Hz | ||
| Interlocking method | Electronic interlocking,the double doors are closed dunng air showering,and the double doors are interlocked atother times.When one door is opened,the other dooris closed. |
||
| Note:Non-standard products can be made according to customer requirements | |||
