| Place of Origin: | China |
| Brand Name: | Haihao |

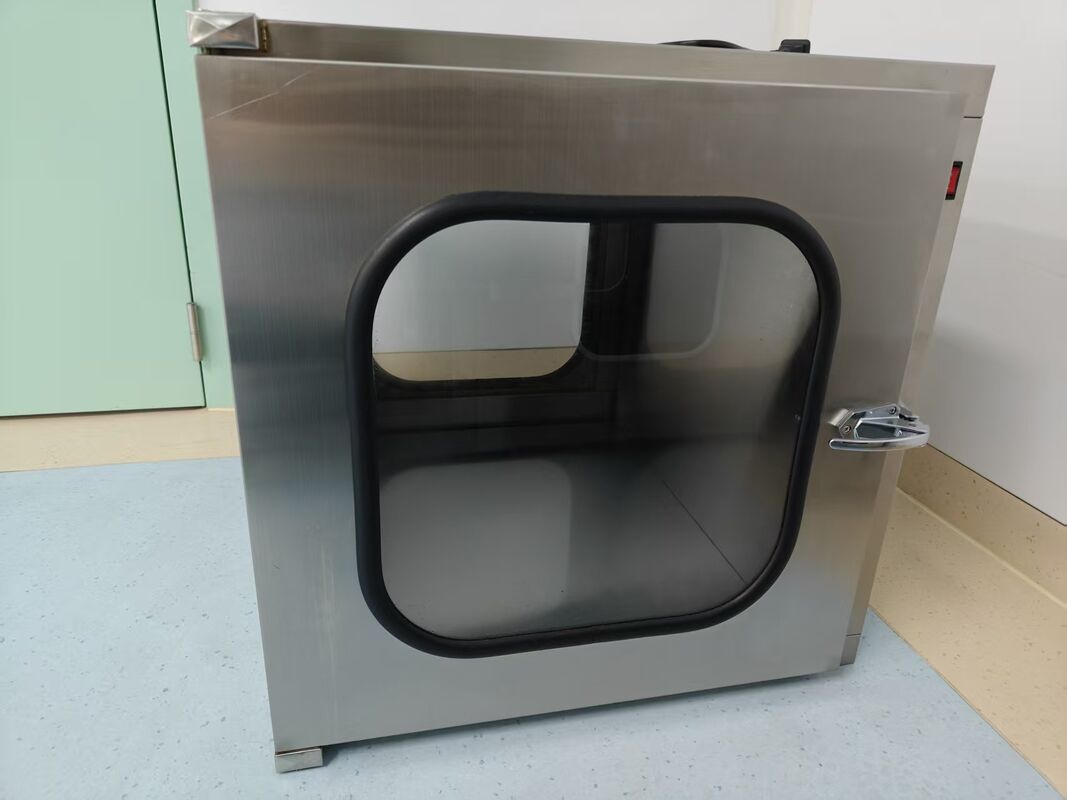

HEPA Air Shower Transfer Window - Stainless Steel Cleanroom Pass-Through System Description: ▶ Advanced Contamination Control:Integrated HEPA filtration removes 99.97% of particles ≥0.3μm from items during transfer. ▶ Robust Construction:Built with high-grade 304/316 stainless steel for durability and easy decontamination. ▶ Safety & Protocol:** Features interlocked doors ensuring only one side opens at a time, maintaining zone integrity. ▶ Efficient Workflow:Streamlines material movement between cleanrooms or controlled environments. ▶ Versatile Applications: Ideal for pharmaceuticals, microelectronics, biotech labs, and ISO Class 5-8 cleanroom
| Air shower transfer window paraments | |||
| P/N | LHH-19-01 | LHH-19-02 | LHH-19-03 |
External Size W*D*H(mm) |
960*600*1450 | 1060*700*1550 | 1160*800*1650 |
Air shower Size W*D*H(mm) |
600*600*600 | 700*700*700 | 800*800*800 |
| Fan configuration | 195#-1 SET | 195#-1 SET | 195#-1 SET |
| Fan power | 450W/SET | 450W/SET | 450W/SET |
| Number of nozzles | 4PC | 5PCS | 5PCS |
| Cleanliness level | 100-1000level | 100-1000level | 100-1000level |
Average wind speed (m/s) |
20-25m/s±15% | 20-25m/s±15% | 20-25m/s±15% |
| Noise level | 60~65dB(A) | 60~65dB(A) | 60~65dB(A) |
Lighting/sterilization lamp |
1PC | 1PC | 1PC |
| Advanced filter | 1SET | 1SET | 1SET |
| Air shower time | 0~90s(Adjustable) | ||
| Material | Cold Plate/SUS201#/SUS304#SUS316# | ||
| Power supply | 380V/50Hz | ||
| Interlocking method | Electronic interlocking,the double doors are closed dunng air showering,and the double doors are interlocked atother times.When one door is opened,the other dooris closed. |
||
| Note:Non-standard products can be made according to customer requirements | |||
