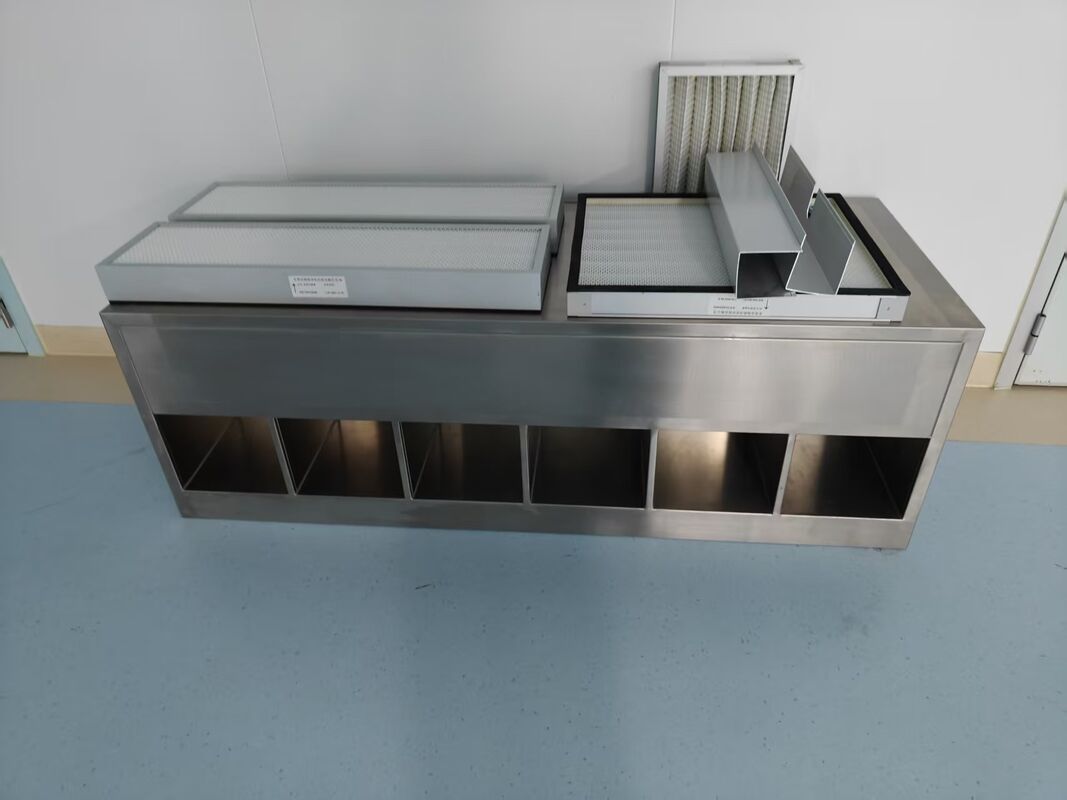

OR-Grade Shoe Cabinet with Negative Pressure Ventilation

1. Product Concept and Design Philosophy

As a specialized manufacturer of operating room equipment, we recognize that contamination control must begin the moment personnel cross the threshold into controlled environments. The PureEntry™ OR-Grade Shoe Storage Cabinet addresses a frequently underestimated pathway for particulate and microbial ingress—footwear. Street shoes carry dirt, organic debris, and significant microbial loads from outside environments, while even dedicated surgical clogs can accumulate particles through daily use. This cabinet provides a dedicated, hygienic enclosure for both personal footwear and cleanroom shoes in surgical anterooms, gowning areas, and laboratory changing rooms. By isolating outside shoes and organizing clean footwear within a HEPA-filtered environment, it serves as an active contamination control device rather than passive storage furniture, supporting comprehensive infection prevention protocols and maintaining the integrity of critical clean zones.

Cabinet is fabricated entirely from 304 stainless steel with a minimum thickness of 1.2 mm, ensuring exceptional structural rigidity and resistance to corrosion from the aggressive cleaning agents, disinfectants, and sterilants routinely used in healthcare environments. All exposed surfaces feature a matte, anti-reflective finish that minimizes visible fingerprints, conceals minor scuffs from daily use, and reduces glare under the intense overhead lighting typical of surgical changing areas.

Construction follows the same rigorous standards as our operating room equipment: every joint and seam is fully welded and ground smooth to create a completely seamless surface with no crevices where dirt, moisture, or bacteria could accumulate. Radiused corners of at least 10 mm are incorporated throughout the design—at all interior and exterior junctions—eliminating sharp angles and facilitating thorough cleaning and disinfection. The cabinet base is elevated on stainless steel adjustable leveling feet that allow for complete floor cleaning underneath the unit, preventing hidden debris accumulation and simplifying environmental hygiene protocols.

3. Integrated HEPA Filtration and Air Management System

Unpleasant odors, moisture, and airborne contaminants can accumulate inside enclosed shoe storage, particularly in warm, humid environments or facilities with high staff turnover. The PureEntry™ cabinet addresses this challenge with an integrated active air management system that maintains a clean, dry, and odor-free interior environment. A low-noise, energy-efficient fan continuously draws air from the cabinet interior through a two-stage filtration process before exhausting cleaned air back into the room or through a dedicated duct connection.

The first stage employs a washable pre-filter that captures larger particles, lint, and visible debris, extending the service life of the main filter. The second stage utilizes a true HEPA H14 filter with certified efficiency of 99.995 percent at 0.3 microns, removing bacteria, fungal spores, and fine particulate matter from the airstream. This filtration system maintains a slight negative pressure inside the cabinet, ensuring that any contaminants released from shoes are immediately captured and filtered rather than escaping into the changing area environment.

The fan system can be configured for continuous operation during peak hours or set on an adjustable timer to match shift patterns and occupancy schedules. A built-in filter status indicator provides visual alert when pre-filter cleaning or HEPA filter replacement is required, ensuring consistent performance and simplifying maintenance scheduling.

Cabinet is thoughtfully engineered for both optimal hygiene and intuitive daily use. Each shelf is constructed with perforated or slotted design to allow maximum air circulation around stored footwear, promoting rapid drying of any moisture and preventing the stagnant conditions that encourage microbial growth. Shelves are angled approximately 3 to 5 degrees downward toward the back of the cabinet, preventing shoes from sliding forward when doors are opened and ensuring stable storage.

Multiple storage configurations are available to accommodate different workflow requirements and facility sizes:

Individual compartment models provide dedicated enclosed spaces for each staff member's personal shoes, with each compartment sized to accommodate a full pair of adult footwear up to European size 48 or US size 14. Compartment doors can be numbered, labeled with staff names, or fitted with transparent windows for easy identification.

Open shelving models allow for quick grab-and-go access to cleanroom clogs or booties in high-traffic areas, with shelves adjustable in 25 millimeter increments to accommodate different shoe sizes and storage volumes.

Pull-out wire basket configurations maximize storage density in larger changing rooms while providing excellent ventilation around stored items and allowing easy transport of multiple pairs.

Standard storage capacities range from 12 to 48 pairs depending on cabinet dimensions, with custom sizes and configurations available to fit specific space constraints and workflow patterns.

5. Door Systems and Hygienic Access Options

Cabinet doors are engineered for positive sealing, smooth operation, and hygienic use. Self-closing hinges and magnetic or mechanical latches ensure that doors remain tightly sealed when not in use, preventing dust ingress, containing any odors, and maintaining the effectiveness of the negative pressure ventilation system. Full-length door pulls are designed for easy operation with gloved hands, with smooth surfaces that can be easily cleaned.

For facilities seeking enhanced visibility and convenience, doors can be specified with tempered safety glass viewing windows that allow quick visual identification of contents without opening, reducing door openings and maintaining interior conditions.

For maximum hygiene in critical environments, optional touchless door operation systems are available. Motion sensors detect approach and automatically open doors, while foot-operated pedals mounted at the base of the cabinet allow hands-free operation. These options eliminate the need to touch handles with potentially contaminated hands, removing a potential route of cross-contamination.

In larger facilities with multiple users, individual compartments can be fitted with electronic locks integrated with staff ID badges, keypads, or biometric readers for secure, traceable shoe storage. This feature supports personnel accountability and can be integrated with facility access control systems.

6. Optional Accessories and Customization Features

Cabinet can be tailored with a comprehensive range of accessories to meet specific facility requirements and enhance functionality:

Ultraviolet disinfection lamps can be installed inside each compartment or on a timed cycle for the entire cabinet, providing automated sterilization between uses. UV exposure times are programmable to ensure effective disinfection of both interior surfaces and stored footwear without damaging materials.

Shoe cover dispensers mounted on the cabinet side panels offer convenient access to disposable booties at the point of changing, encouraging compliance with gowning protocols and reducing the distance staff must travel between steps.

Built-in seating benches with stainless steel tops provide a comfortable, fully cleanable surface for staff to sit while changing footwear, improving ergonomics and reducing physical strain in busy changing areas.

Digital occupancy displays using LED indicators show available compartments at a glance, reducing search time during shift changes and improving workflow efficiency.

RFID tracking technology can be integrated to assign specific compartments to individual staff members, monitor usage patterns, and support inventory management of facility-provided footwear.

For environments requiring enhanced corrosion resistance—such as coastal facilities, facilities using aggressive chemical disinfectants, or those processing particularly contaminated items—the cabinet is also available in 316L marine-grade stainless steel with enhanced molybdenum content for superior pitting and crevice corrosion resistance.

7. Applications and Regulatory Compliance

 OR-Grade Shoe Storage Cabinet is designed for a wide range of controlled environments where footwear management is critical to contamination control:

Operating room changing areas and scrub rooms where staff transition from street clothes to surgical attire

Cleanroom gowning rooms in pharmaceutical manufacturing, biotechnology facilities, and medical device production

Hospital isolation units, transplant wards, and protective environment rooms for immunocompromised patients

Laboratory ante rooms requiring controlled access in clinical diagnostics, research, and pathology facilities

Veterinary surgical suites and research animal facilities where cross-contamination between areas must be prevented

The cabinet is manufactured under an ISO 13485 certified quality management system, ensuring consistent quality, documented traceability, and compliance with medical device manufacturing standards. It meets or exceeds the hygiene requirements of relevant international standards including HTM 01-05 for surgical suites, ISO 14644 for cleanroom environments, and GB 50591 for cleanroom construction where applicable. For facilities seeking regulatory accreditation from organizations such as The Joint Commission or AAAHC, the PureEntry™ cabinet provides documented assurance of proper design and construction for controlled environments.

8. Installation, Maintenance, and Lifecycle Considerations

It's is designed for straightforward installation and minimal long-term maintenance. Each unit ships fully assembled and requires only electrical connection and final positioning. Adjustable leveling feet accommodate minor floor irregularities and allow precise alignment with adjacent cabinetry.

Recommended maintenance is simple and clearly documented. Cabinet surfaces should be cleaned daily with hospital-grade disinfectants compatible with stainless steel. The washable pre-filter should be inspected monthly and cleaned with mild detergent and water as needed. HEPA filter replacement is typically required every 12 to 24 months depending on usage intensity and environmental conditions, with the filter status indicator providing clear guidance.

The all-stainless-steel construction with fully welded seams and high-quality components ensures a useful life measured in decades rather than years, representing a lower total cost of ownership compared to lesser-quality alternatives. Replacement parts are readily available, and all mechanical and electrical components are designed for easy service access.

9.  Advantage

Choosing OR-Grade Shoe Storage Cabinet means selecting a solution engineered specifically for the unique demands of healthcare clean zones by a manufacturer with decades of operating room technology experience.

It delivers genuine active contamination control through HEPA-filtered ventilation and negative pressure management, not simply passive storage. It prevents odors and microbial growth through continuous air exchange, not occasional cleaning. It provides surgical-grade stainless steel construction that ensures decades of reliable service with minimal maintenance, representing a lower total cost of ownership over the equipment lifecycle. Its thoughtful ergonomic design improves changing room workflow and staff satisfaction through intuitive features and flexible configurations. And its comprehensive compliance with international standards provides confidence for regulatory inspections and accreditation surveys.

For more information, detailed specifications, or to discuss your specific requirements with our cleanroom equipment specialists, please contact our healthcare division. We bring operating room standards to every corner of your facility.
