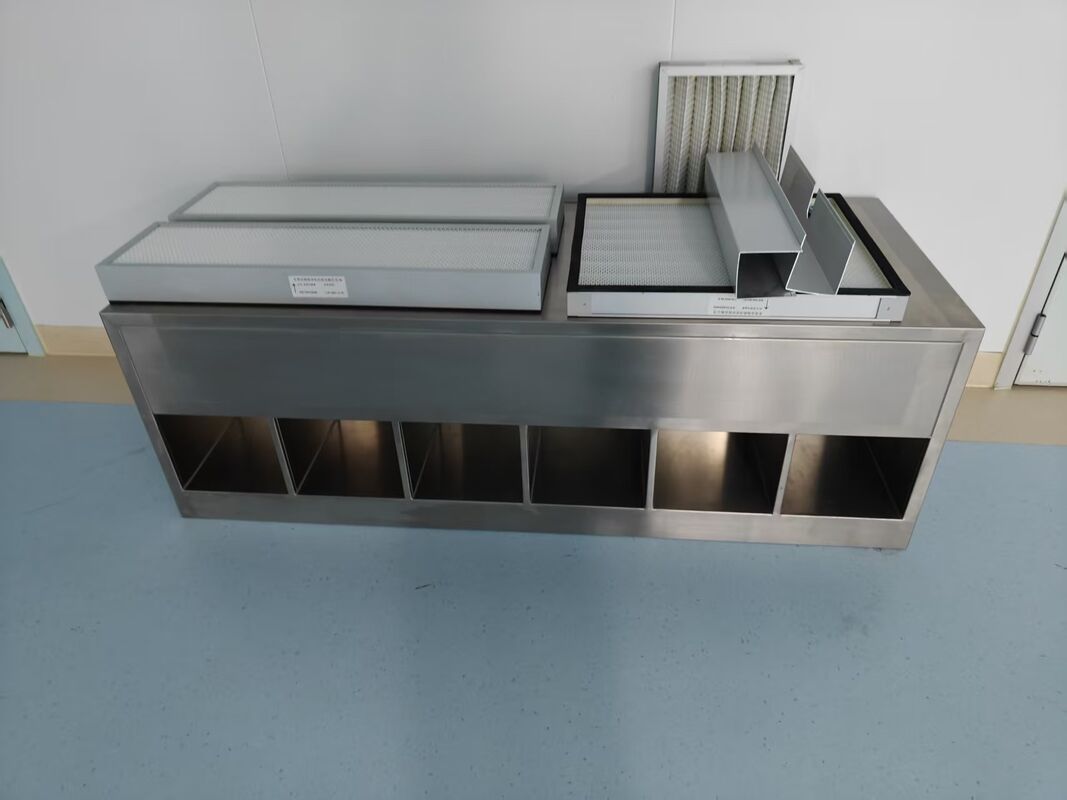

OR-Grade Shoe Cabinet with Negative Pressure Ventilation

1. Product Philosophy

As a specialized manufacturer of operating room equipment, we understand that contamination control is a continuum that begins the moment personnel enter the healthcare facility.OR-Grade Shoe Storage Cabinet addresses a frequently overlooked vector of contamination—footwear. Street shoes carry dirt, organic matter, and microbial loads from outside environments, and even dedicated surgical clogs can accumulate particles over time. This cabinet provides a dedicated, hygienic enclosure for both personal shoes and cleanroom footwear in surgical anterooms, gowning areas, and laboratory changing rooms. By isolating outside shoes and organizing clean footwear, it helps maintain the integrity of the clean zone and supports comprehensive infection prevention protocols.

2. Surgical‑Grade Material and Construction

Cabinet is fabricated entirely from 304 stainless steel with a minimum thickness of 1.2 mm, ensuring exceptional durability and resistance to corrosion from cleaning agents, disinfectants, and sterilants used in healthcare environments. All surfaces feature a matte, anti‑reflective finish that minimizes fingerprints, hides minor scuffs, and reduces glare under the bright lighting typical of changing areas.

Construction follows the rigorous standards of operating room equipment: all joints and seams are fully welded and ground smooth to create a seamless surface with no crevices where dirt or bacteria could accumulate. Radiused corners of at least 10 mm are incorporated throughout, eliminating sharp angles and facilitating thorough cleaning and disinfection. The cabinet base is elevated on adjustable leveling feet to allow complete floor cleaning underneath, preventing hidden debris accumulation and simplifying environmental hygiene.

3. HEPA‑Filtered Air Management System

Unpleasant odors and airborne contaminants can accumulate inside enclosed shoe storage, particularly in warm, humid environments. The MediGate™ cabinet addresses this with an integrated air management system that maintains a clean, odor‑free interior. A low‑noise, energy‑efficient fan continuously draws air from the cabinet through a two‑stage filtration process. A washable pre‑filter captures larger particles and lint, while a HEPA H14 filter with 99.995% efficiency at 0.3 microns removes bacteria, fungal spores, and fine particulate matter. The cleaned air is then exhausted back into the room or through a dedicated duct connection.

This system maintains a slight negative pressure inside the cabinet, ensuring that any contaminants released from shoes are captured and filtered rather than escaping into the changing area. The fan can be configured for continuous operation or set on an adjustable timer to match shift patterns. A filter status indicator alerts staff when maintenance is required, ensuring consistent performance.

4. Ergonomic Interior Design and Storage Flexibility

The interior of the cabinet is engineered for both hygiene and ease of use. Each shelf is perforated or slotted to allow maximum air circulation and rapid drying of any moisture from wet shoes. Shelves are angled slightly downward toward the back, preventing shoes from sliding forward when the door is opened.

Multiple storage configurations are available to accommodate different workflow requirements:

• Individual compartment models provide dedicated spaces for each staff member's personal shoes, with each compartment sized to accommodate a full pair of adult footwear. Compartment doors can be numbered or labeled for easy identification.

• Open shelving models allow for quick grab‑and‑go access to cleanroom clogs or booties in high‑traffic areas, with shelves adjustable in 25 mm increments.

• Pull‑out wire basket configurations maximize storage density in larger changing rooms while providing ventilation around stored items.

Standard storage capacities range from 12 to 48 pairs depending on cabinet dimensions, with custom sizes available to fit specific space constraints.

5. Hygienic Door Systems and Access Options

Cabinet doors are engineered for positive sealing and hygienic operation. Self‑closing hinges and magnetic or mechanical latches ensure that doors remain tightly sealed when not in use, preventing dust ingress and containing any odors. Full‑length door pulls are designed for easy operation with gloved hands.

For facilities seeking enhanced visibility, doors can be specified with tempered safety glass viewing windows to allow quick visual identification of contents without opening. For maximum hygiene, optional touchless door operation is available—motion sensors or foot‑operated pedals allow doors to be opened without hand contact, eliminating a potential route of cross‑contamination.

In facilities with multiple users, individual compartments can be fitted with electronic locks integrated with staff ID badges or keypads for secure, traceable shoe storage. This feature is particularly valuable in large departments where personal accountability for footwear is required.

6. Optional Accessories and Customization Features

Cabinet can be tailored with a range of accessories to meet specific facility needs:

• Ultraviolet disinfection lamps can be installed inside each compartment or on a timed cycle for the entire cabinet, providing automated sterilization between uses. UV exposure times are programmable to ensure effective disinfection without damaging footwear materials.

• Shoe cover dispensers mounted on the cabinet side panels offer convenient access to disposable booties at the point of changing, encouraging compliance with gowning protocols.

• Built‑in seating benches with stainless steel tops provide a comfortable, cleanable surface for staff to sit while changing footwear, improving ergonomics in busy changing areas.

• RFID tracking can be integrated to assign specific compartments to individual staff members and monitor usage patterns, supporting inventory management and personnel accountability.

• Custom labeling or digital displays can show staff names, compartment availability, or instructional messages.

For environments requiring enhanced corrosion resistance, such as coastal facilities or those using aggressive chemical disinfectants, the cabinet is also available in 316L stainless steel.

7. Applications and Regulatory Compliance

OR-Grade Shoe Storage Cabinet is designed for a wide range of controlled environments where footwear management is critical to contamination control:

• Operating room changing areas and scrub rooms

• Cleanroom gowning rooms in pharmaceutical and biotechnology facilities

• Hospital isolation units and transplant wards

• Laboratory ante rooms requiring controlled access

• Veterinary surgical suites and research animal facilities

The cabinet is manufactured under an ISO 13485 certified quality management system, ensuring consistent quality and traceability. It meets or exceeds the hygiene requirements of relevant international standards including HTM 01‑05 for surgical suites, ISO 14644 for cleanroom environments, and GB 50591 for cleanroom construction where applicable. For facilities seeking regulatory accreditation, the MediGate™ cabinet provides documented assurance of proper design and construction for controlled environments.

8. Advantage

Cabinet means selecting a solution engineered specifically for the demands of healthcare clean zones. It delivers genuine contamination control through HEPA‑filtered ventilation and positive sealing, not simply passive storage. Its surgical‑grade stainless steel construction ensures decades of reliable service with minimal maintenance, representing a lower total cost of ownership over the equipment lifecycle. The thoughtful ergonomic design improves changing room workflow and staff satisfaction, while comprehensive compliance with international standards provides confidence for regulatory inspections and accreditation surveys.

For more information, detailed specifications, or to discuss your specific requirements, please contact our cleanroom equipment division. We bring operating room standards to every corner of your facility.
